Can You Put an Undermount Sink in a Compact Laminate Worktop?

If you are planning a modern kitchen renovation, ultra-slim 12.5mm compact laminate worktops (like Zenith, Bushboard Evolve, or Axiom) are likely at the top of your list. They offer a sleek, contemporary stone-like aesthetic without the premium price tag of quartz or granite.

One of the most frequent questions homeowners ask when choosing this material is: “Can I install a premium undermount sink with compact laminate, or am I stuck with a traditional overmount sink?”

The short answer is yes, absolutely. Because compact laminate is a solid-core, completely waterproof material, it is perfectly suited for undermount sinks and custom drainage grooves.

However, achieving that flawless, flush showroom finish is not a standard DIY job. Here is what you need to know about the fabrication process and why it requires an experienced hand.

Why Compact Laminate Works with Undermount Sinks

Traditional standard laminate worktops have a chipboard core. If you cut into them to mount a sink underneath, the raw wood particle core is exposed to water, meaning it will inevitably absorb moisture, swell, and blow.

Compact laminate is entirely different. It is manufactured by compressing layers of decorative paper and robust resin under immense heat and pressure. The result is a solid, high-density composite block that is 100% waterproof all the way through. You can cut, router, and expose the internal edge to water all day long, and it will never swell or rot.

The Reality of the Installation: Why It’s a Specialist Job

While the material itself is perfectly waterproof, fabricating the cutout for an undermount sink is incredibly demanding. Unlike cutting a hole for an overmount sink—where the rough edge is hidden beneath a stainless steel lip—an undermount cutout leaves the raw internal edge of the worktop completely visible.

To get a perfect finish, a specialist fitter must follow a strict process:

1. Precision Jigs & Heavy-Duty Tooling

Compact laminate is dense and incredibly tough. Standard woodworking tools will instantly burn out or cause the material to chip. Cutting a perfect undermount radius requires heavy-duty routers and specialized carbon or diamond-tipped cutters to achieve a crisp, perfectly straight line.

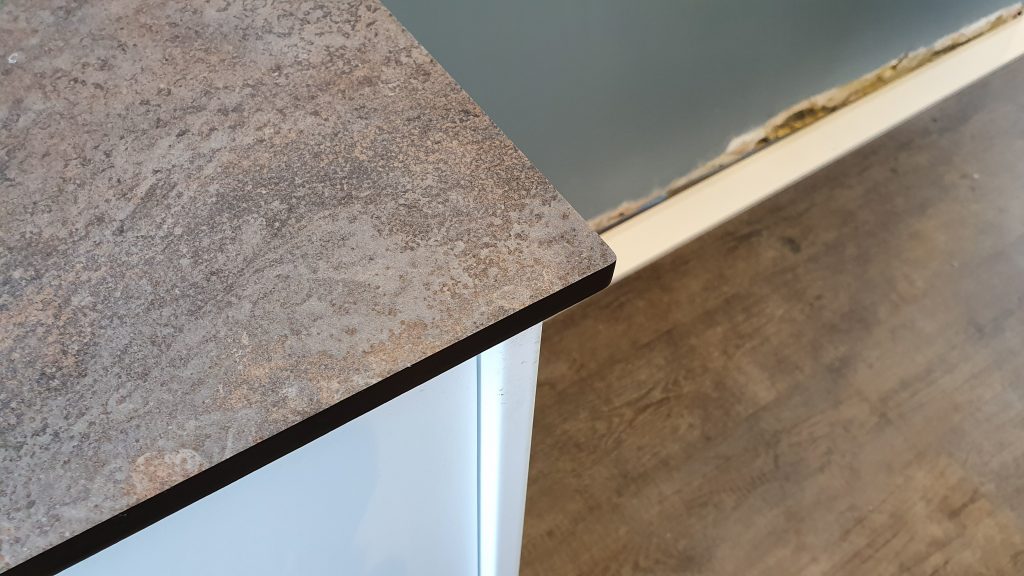

2. Edge Profiling and Sanding

Once the sink cutout is routed, the exposed edge is sharp and dull. It must be carefully profiled (usually with a slight bevel or radius) and painstakingly sanded through progressive grits of sandpaper before being sealed. This reveals the solid, dark core of the material and leaves it feeling perfectly smooth to the touch.

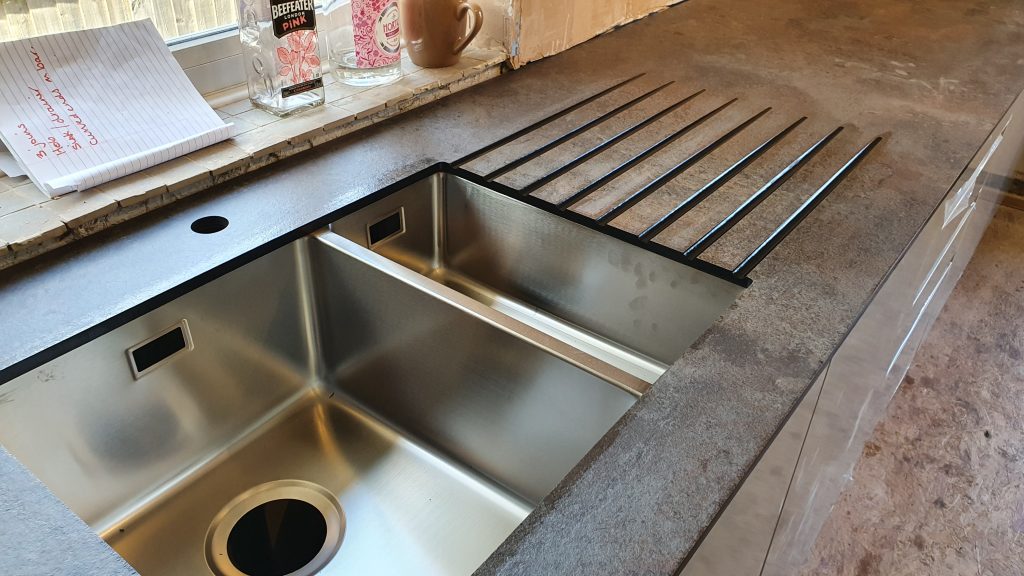

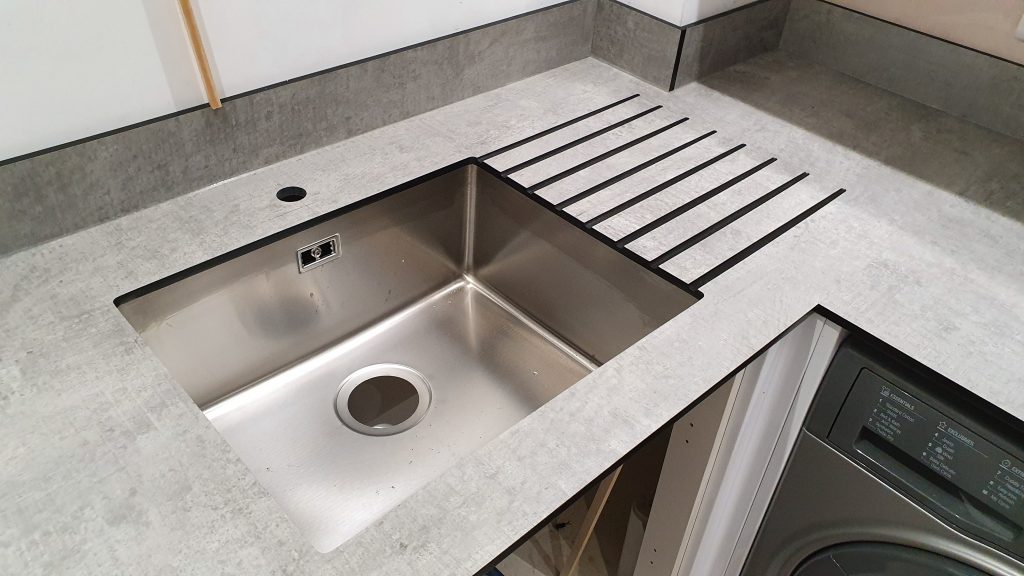

3. Machined Drainer Grooves

To truly elevate the installation, you can have sloping drainer grooves routed directly into the compact laminate next to the undermount sink. These must be cut at a precise gradient using a dedicated jig so that water naturally flows back down into the sink basin rather than pooling on the surface.

Avoid the Common Trap: Don’t Rely on General Tools

Many homeowners buy their dream Zenith or compact laminate worktops only to find out at the last minute that their general builder or kitchen installer doesn’t have the specialized equipment or training to cut it cleanly. There is zero room for error; if a router slips or a cutter chips the face of the laminate, the entire length of the worktop is ruined.

If you want the luxury look of an undermount sink with your slimline worktops, always ensure your installer has specific experience working with solid-core composites.

Need a Compact Laminate Specialist in Sussex?

If you have purchased a compact laminate worktop and want an undermount sink perfectly routed, profiled, and fitted to showroom standards, I can help. Based in Shoreham-by-Sea, I provide a professional fit-only service across West and East Sussex, including Brighton, Worthing, and Hove and Beyond
